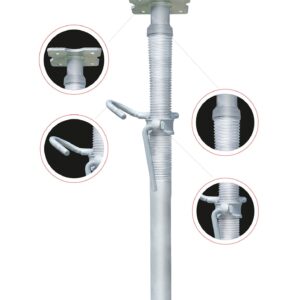

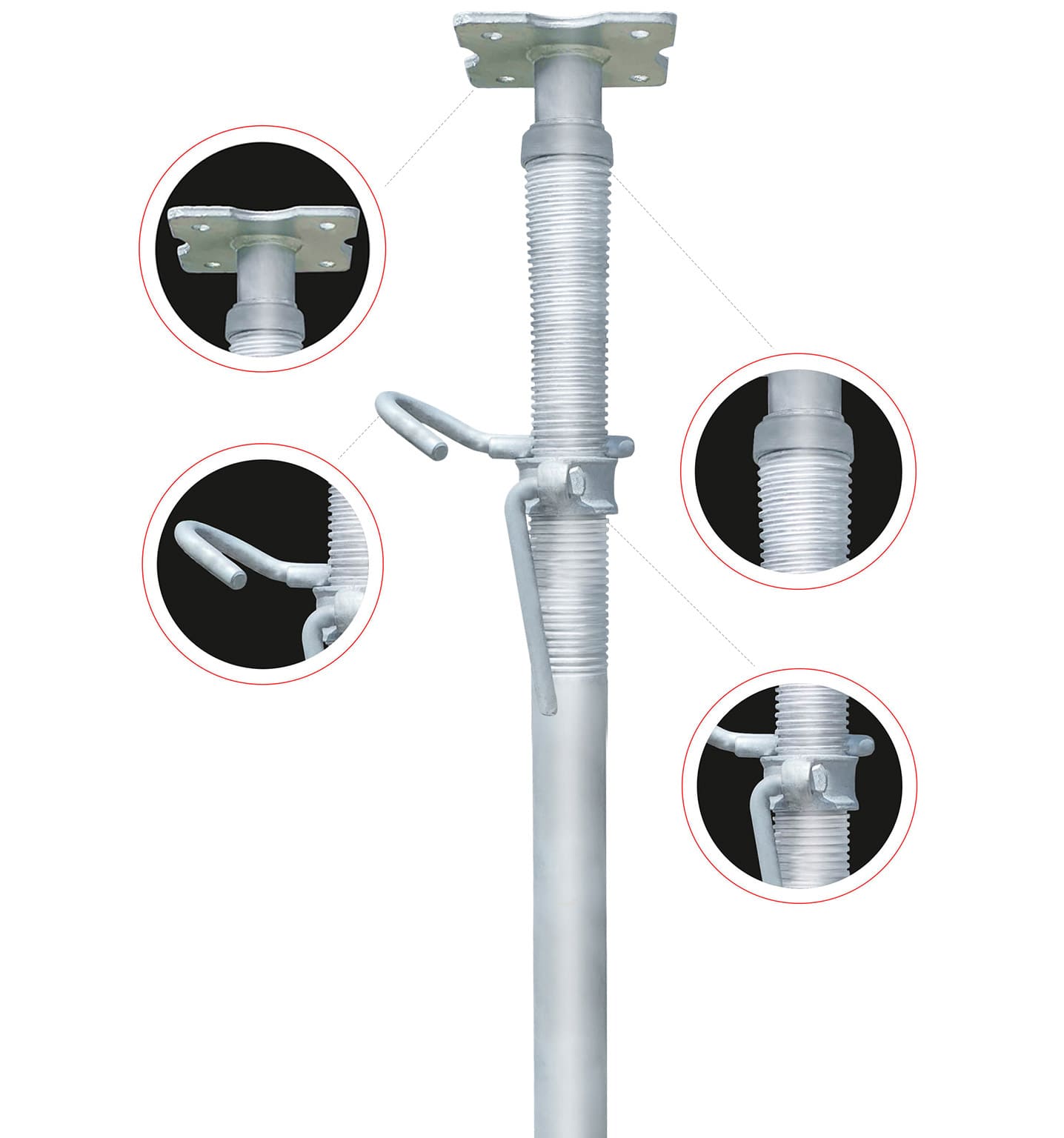

- CGH Props are industrial grade Formwork Prop.
- Deal method of support for formwork, columns, beams and walls.
- CGH Props are made with prime quality raw materials.

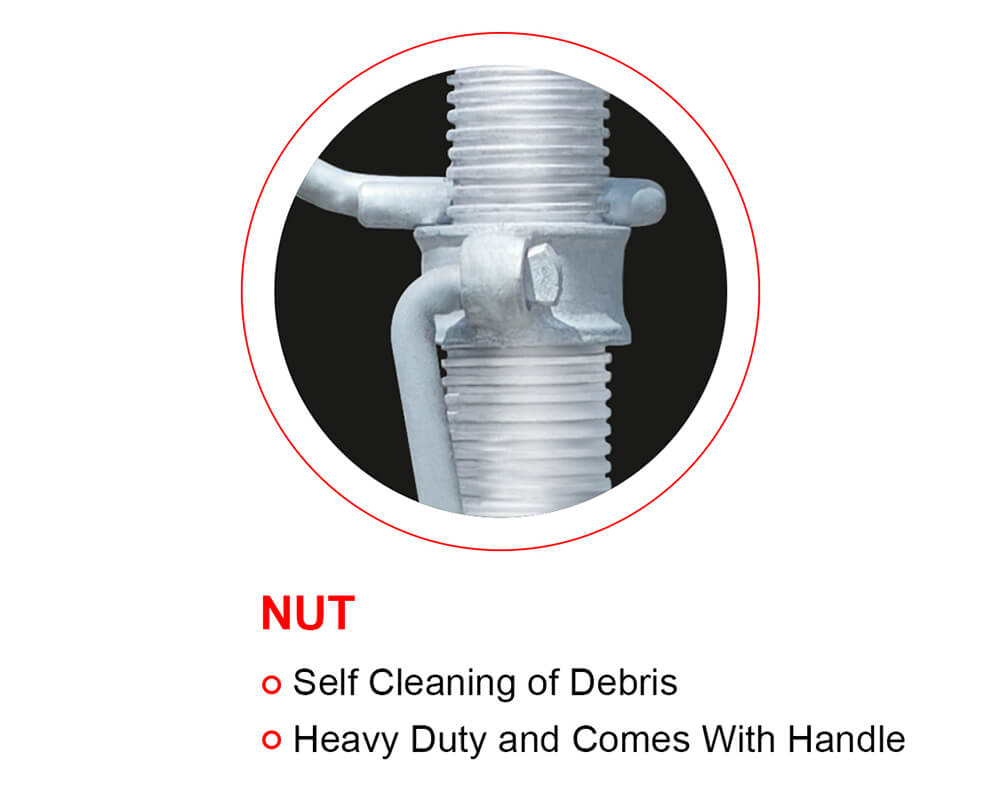

- Props nut that cleans it self

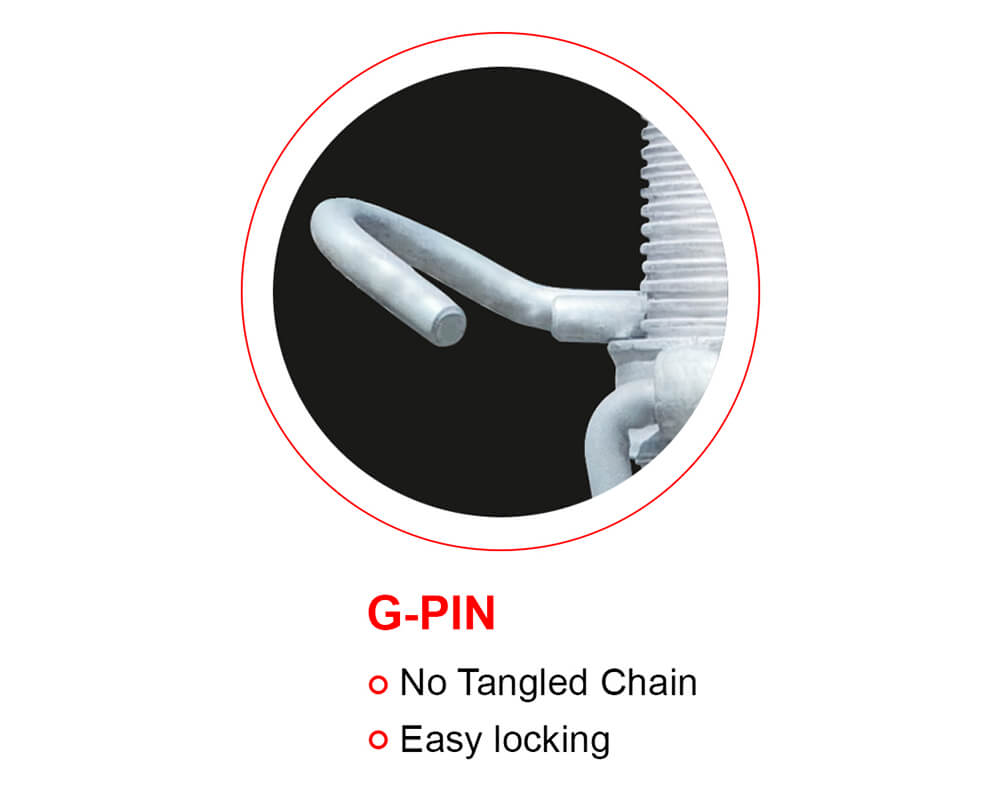

- All CGH props come complete with a locking G pin.
- CGH props are designed for easy stacking.
- At welding and threading process are completed prior to the Prop being hot dipped.
CGH Prop Specifications as per AS/NZS 3610:1995
| Code | Size (Close – Open) | Weight | WLL CLOSED | WLL OPENED |
|---|---|---|---|---|
| STUMPER | 0.45M x 0.70M | 9.31 kg | 51KN | 46.2KN |
| 00 | 0.69m x 1.16m | 10.75 kg | 40KN | 30KN |
| 0 | 1.07m x 1.82m | 14.41 kg | 26KN | 19KN |
| 1 | 1.60M x 2.80M | 20.78 kg | 24KN | 13KN |
| 2 | 1.98m x 3.35m | 21.83 kg | 24KN | 13KN |
| 3 | 2.59m x 3.95m | 24.61 kg | 21KN | 13KN |
| 4 | 3.2m x 4.87m | 29.54 kg | 18KN | 7KN |
Props for Sale
If you’re looking to buy props in Adelaide, SA we have what you need. CGH has a range of props for sale in all City locations.

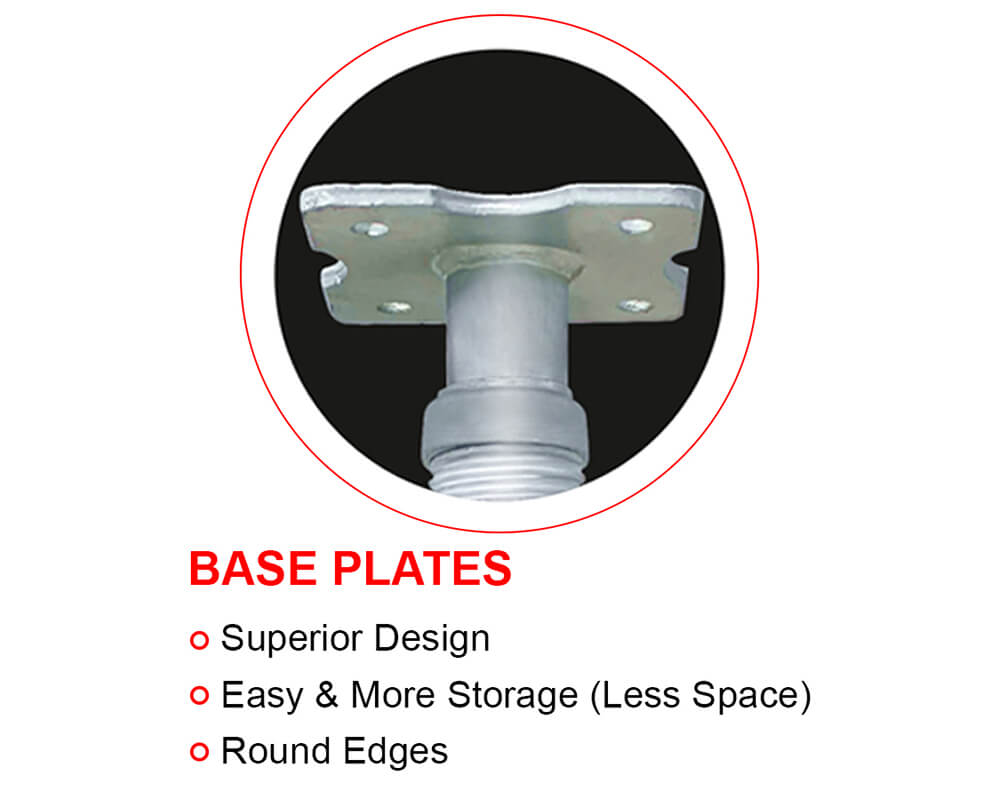

CGH Scaffold’s Props are made with Prime Quality Raw materials and then hot-dipped galvanized at the completion of manufacture. All welding and threading processes are completed prior to the Prop being hot dipped, meaning that all surfaces that are exposed to the environment are fully protected by this process. All components including the inner & outer tube, base & head plates and threads are completely galvanised.
By utilising this technique, instead of the cheaper, faster zinc spraying of welding joints and threads, we can guarantee a no rust product with limited maintenance over our competitors.
If you need to buy props in Adelaide, SA in time for your next build, we have a range of props for sale on hand in our warehouse locations.
